1-Ton Dana 44 High Steer Kit – Lifetime Warranty Chevy 10 Bolt Crossover Steering for Jeep/GM Trucks

Complete EWO Dana 44 high steer kit – the ultimate crossover steering system upgrade for your Chevy 10 bolt or Jeep Dana 44 axle. This 1 ton high steer kit is USA made with billet high steer arms and includes a lifetime warranty.

Why This Kit? If you're running a lifted Jeep, Chevy truck, or GMC truck and need serious steering linkage upgrade for rock crawling, off-road suspension steering, or full lock steering capability, this Dana 44 crossover steering kit delivers.

Flat top knuckle Dana 44 design with steering knuckle Dana 44 precision machining

1.25 inch thick steering arm (4-hole style) made from domestic billet blocks

Heavy duty steering kit built for articulation steering geometry and improved steering control

Metal on metal ball joint and metal to metal drag link ends with spring technology

Bottom up taper knuckle ensures proper steering geometry correction

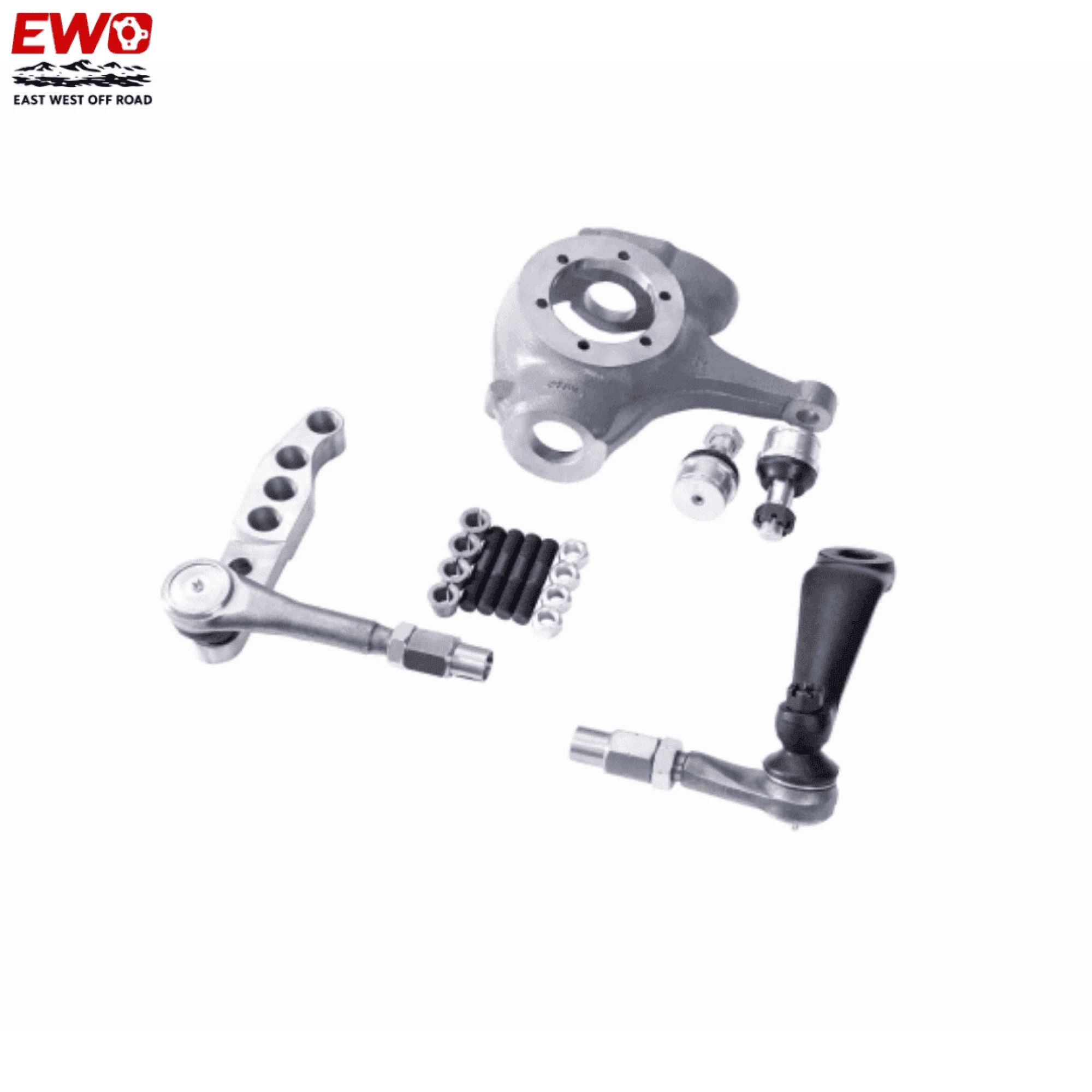

Complete Kit Contents Knuckle & Arms:

1 x EWO Dana 44 knuckle – machined with bottom up taper

1 x Passenger side arm – 1.25" thick billet high steer arm, tapered for 7/8" Chevy ¾ ton tie rods

Drag Link & Tie Rod Ends (1 ton strength):

1 x ES 2026 R drag link end with grease fitting, castle nut, cotter pin

1 x ES 2027 L drag link end with grease fitting, castle nut, cotter pin

7/8 tie rod ends compatible with 3/4 ton tie rod and 1 ton tie rod ends

Hardware & Ball Joints:

4 x Chromoly studs 9/16"

4 x Conical washers steering

4 x Lock nuts

1 x Metal on metal upper ball joint

1 x Metal on metal lower ball joint

Tube Adapters & Pitman Arm:

2 x 7/8-18 left & right inserts / tube adapters / weld bungs

2 x 7/8-18 left & right jam nuts

1 x 3" drop forged pitman arm (32 splines) – fully indexable

1 x Slit tapered insert for orientation changes

Note: Kit ships without DOM tubing – source DOM tubing drag link locally to save on shipping.

Perfect For These Builds Jeep steering upgrade and Jeep high steer knuckle conversions

Chevy truck crossover steering and GMC truck high steer projects

Full size Chevy steering (1977-1987 Chevy steering, K5, K10, K20)

Lifted truck steering geometry correction and steering box conversion

Rock crawling steering and off-road Jeep steering applications

Truck steering upgrade for 4x4 steering kit builds with big tires

USA Made Quality American made steering parts – machined in the USA by EWO

Lifetime warranty steering – arms and knuckle guaranteed for life

Heavy duty steering linkage built for off-road steering durability

Steering arm tapered and precision machined for perfect fit

Crossover Steering Benefits ✅ Full lock steering capability for tight trails ✅ Steering geometry correction – eliminates bump steer on lifted trucks ✅ Improved steering control – better feedback and precision ✅ Heavy duty steering kit strength for big tires and lockers ✅ Billet aluminum steering aesthetics with steel strength

Compatibility Works with:

Dana 44 crossover steering kit applications

Chevy 10 bolt crossover steering axles

Jeep Dana 44 steering setups

High steer draglink and steering linkage upgrade projects

Off-road steering components from WFO Concepts, Ruff Stuff, Rock Jock high steer, MetalCloak steering kit, Rugged Ridge, YETI XD, and Reid Racing steering knuckle builders

Condition & Pricing Condition: Brand new, in-box

Warranty: Lifetime warranty on knuckle and arms

Price: Contact for current high steer kit price

Shipping: Fast USA shipping (save on shipping by sourcing DOM tubing locally)
